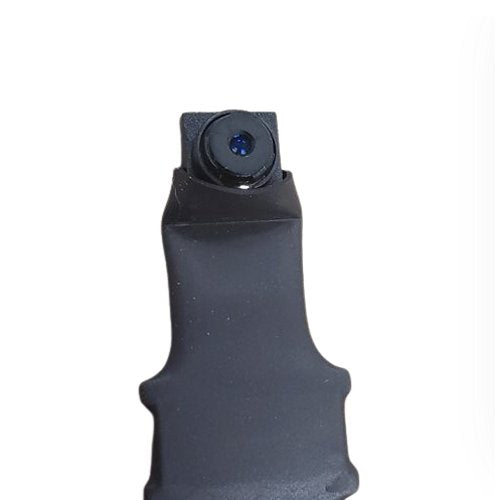

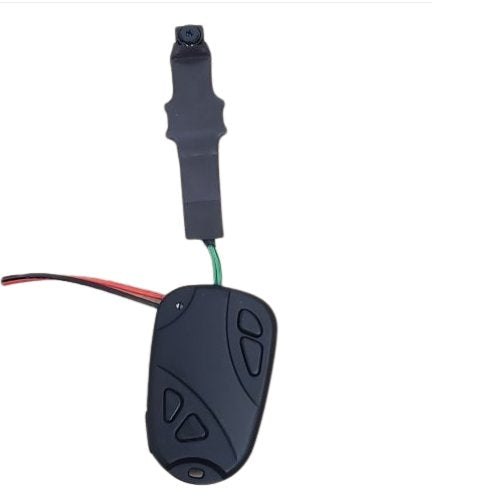

Our HD Custom Camera Module was developed in response to high customer demand for a compact, easy-to-install camera with a tiny pinhole lens that can be discreetly hidden in almost any location.
This versatile camera can be concealed in cars, nursing homes, picture frames, canvases, metal poles (e.g., chair legs), and thousands of other discreet spots. To expand its installation options even further, we offer a range of optional accessories:
1M Power Lead – The standard battery connector is approximately 6". If you need to position the battery further away, we can extend the lead to 1 metre.
12V Wiring Kit – Ideal if you prefer not to recharge the battery. This accessory replaces the battery with a 12V–5V dropper, allowing you to power the camera directly from a 12V DC supply or car battery.
The module records video and audio directly onto a Micro-SD card, which can be viewed on any PC or smartphone by removing the card and inserting it into your device. Time and date settings can also be configured if required for official use.
The camera arrives fully prepared with a battery, built-in charger, and SD card. It is designed for user-friendly operation and works with a simple one-button control. A setup program included on the SD card allows you to adjust a range of settings, although the default configuration is suitable for most users.
Please Note:
The setup program requires Windows XP or later.
The program is only needed for changing settings; recordings can be viewed using any software capable of playing MP4 files.
When using the Extreme battery, we recommend purchasing the external charger, as recharging via the built-in charger can take approximately 40 hours.
Specifications
Sensor: 1/4” CMOS WXGA HD Sensor
Processor: H.264/AVC1 DSP / Hynix 512M DDR2
Video:
1080p HD, H.264/H.265 codec
1920 × 1080 at 25/30fps
MP4 format
Angle of View: Approximately 60°
Storage: Supports Micro-SD cards up to 64GB
Battery Life (Standby):
24 hours with standard battery (included)
48 hours with long-life battery
180 hours (7 days) with Extreme battery
Storage Usage (approx.):
7GB per hour @ 1080p
4GB per hour @ 720p
Important:
If using your own 64GB Micro-SD card, it must be formatted to FAT32.
Battery life and storage consumption may vary depending on factors such as lighting, temperature, and scene complexity.
